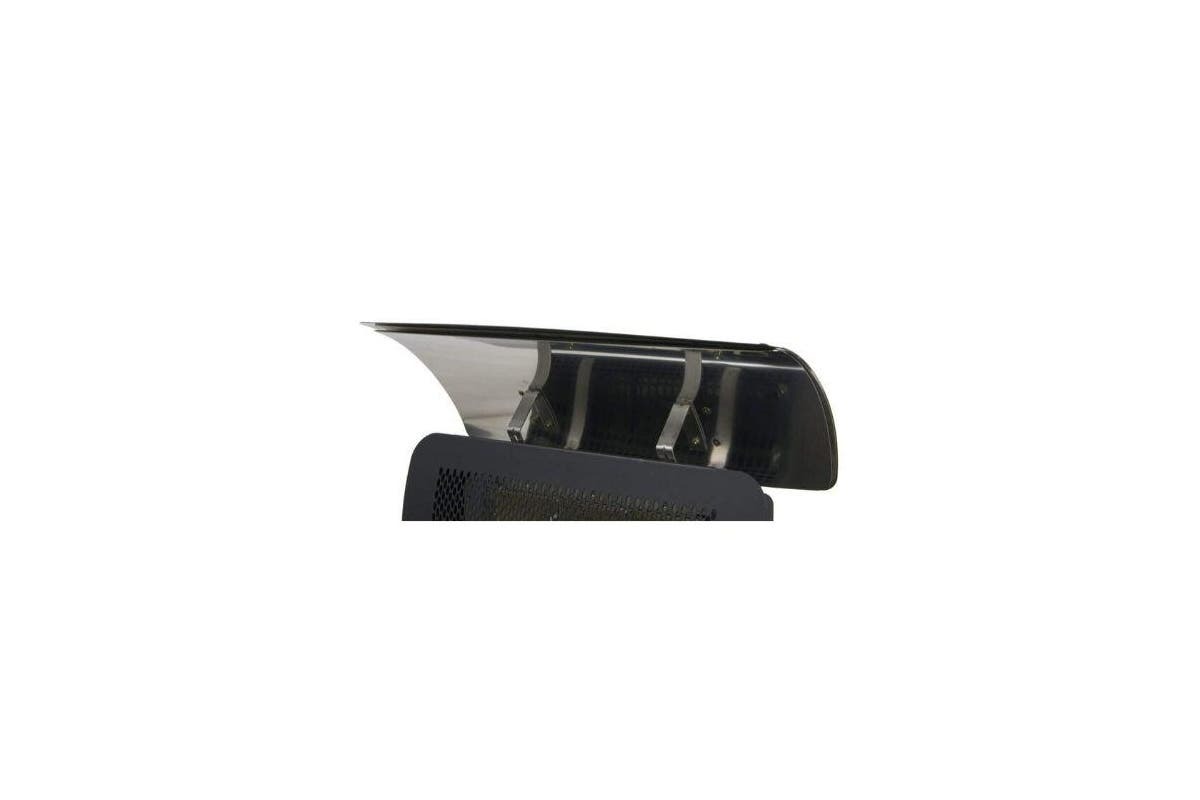

Bromic Heat Deflector suits Tungsten Smart-Heat 300 Series Gas Radiant Heater- 2620600

Bromic Heat Deflector dual-layer stainless steel deflectors significantly reduce the clearance needed between the top of a heater and the surface above it (down to only 355mm) by absorbing heat that would otherwise escape vertically.

(2620600)

1 x Bromic Heat Deflector suits Tungsten Smart-Heat 300 Series Gas Radiant Heater- 2620600

Features:
Universal Bracket: Easy upgrade from 300 to 500 model. No additional plumbing or wiring required.
Bi-directional Easy-pivot arm: 25° rotation each side.
Electronic Ignition: One or multiple units can be switched on and off simultaneously from a single remote-located switch.
Automatic Re-ignition: Should the heater not re-ignite for any reason, the integrated "Flame Failure safety Shut-off Control" turns the heater off immediately.
Stainless Steel Casing: Components are protected from tampering. Assists in preventing dirt and dust from accumulating on the wiring and components
Specifications:
Model no: 300 Series
Heat Deflector part no: 2620600
Ceiling Pole: 5 pole lengths to suit ceiling heights of 3.2, 3.4, 3.6, 3.8 and 4m (contact Bromic Heating for more information)
Heat Output (on LPG and NG): 25 Mj
Approximate area heated: up to 15m2
Gas connection: 3/8" SAE
Electrical connection: 220-240 V
Weight: 2 kg
Material: 304 Grade Coated Stainless Steel
Colour: Stainless Steel



Min. distance to combustiable materials2:
Side: 1100 mm



(without heat deflector)2 :
Above (to ceiling): 1100 mm



(with heat deflector)2 :
Above (to ceiling): 350 mm



Dimensions:
Width: 490 mm
Depth: 356 mm
Height: 404 mm
SKU 2620600
Model # 2620600
Brand Bromic
Shipping Weight 2.5000kg
Shipping Width 0.500m
Shipping Height 0.450m
Shipping Length 0.400m
Shipping Cubic 0.090000000m3
Assembled Length 0.356m
Assembled Height 0.404m
Assembled Width 0.490m
